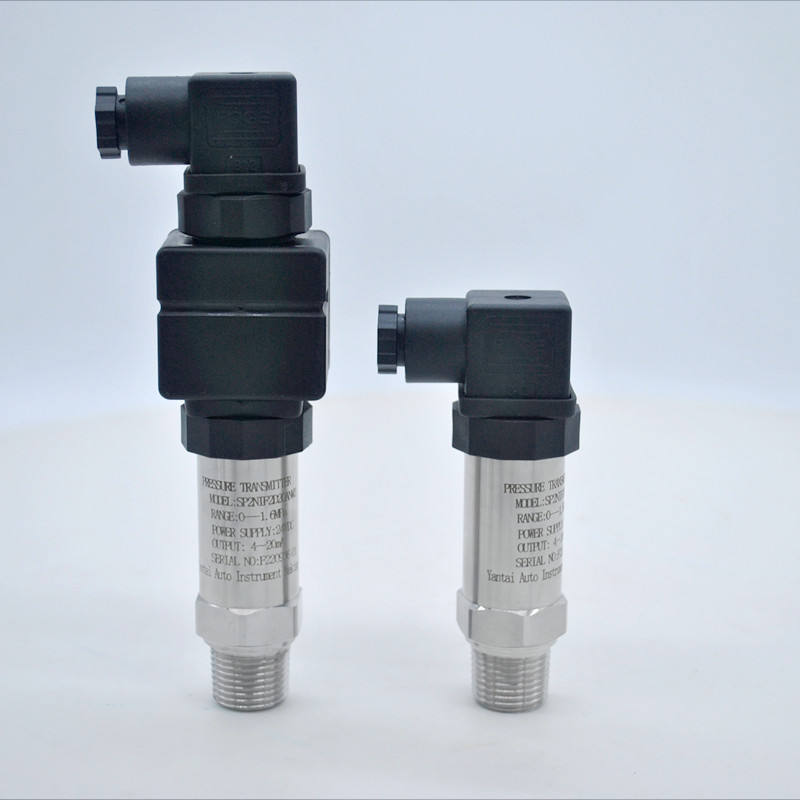

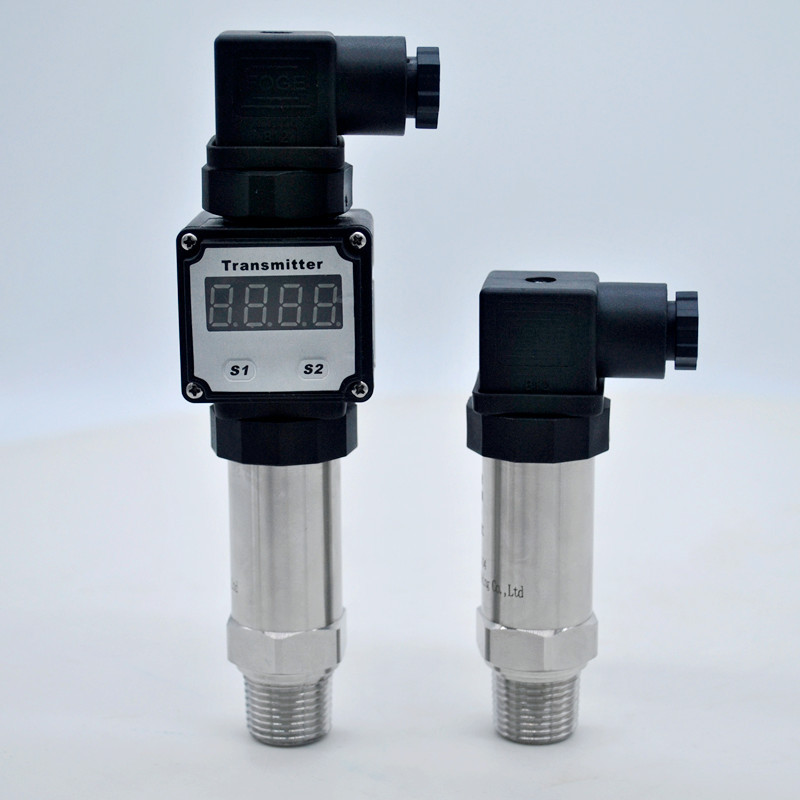

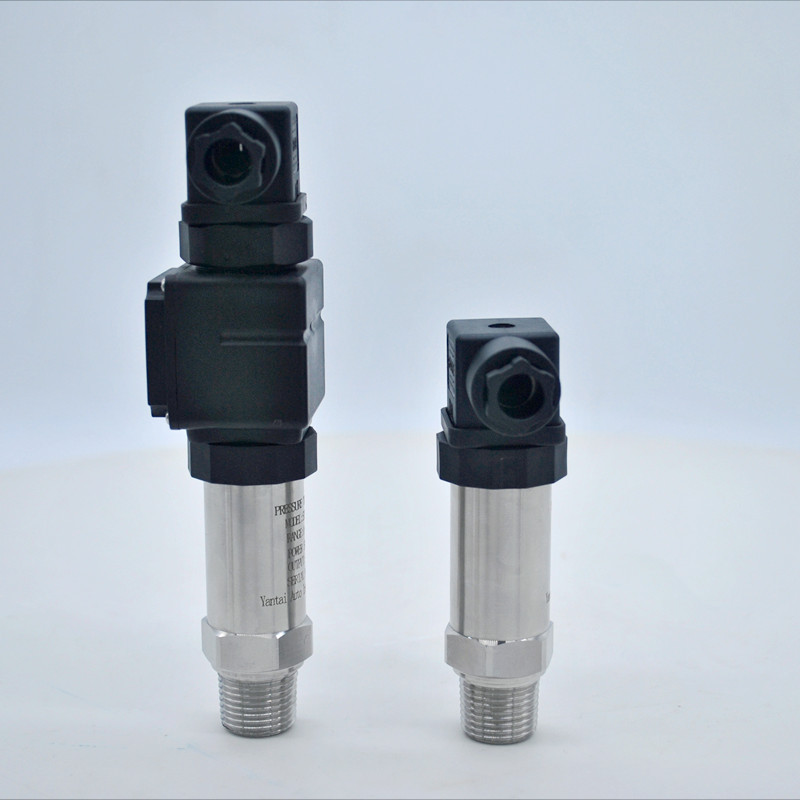

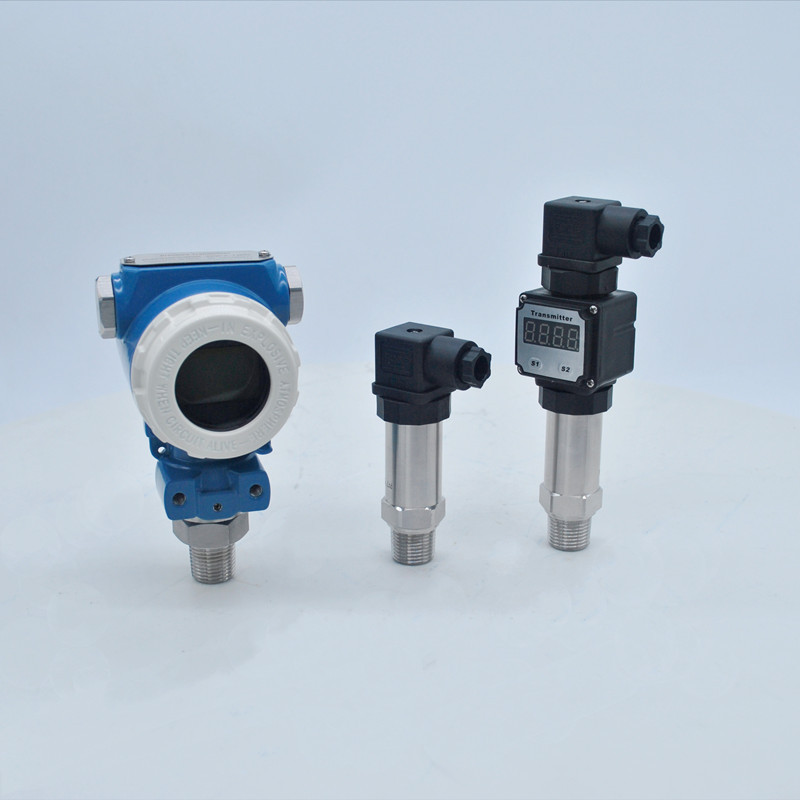

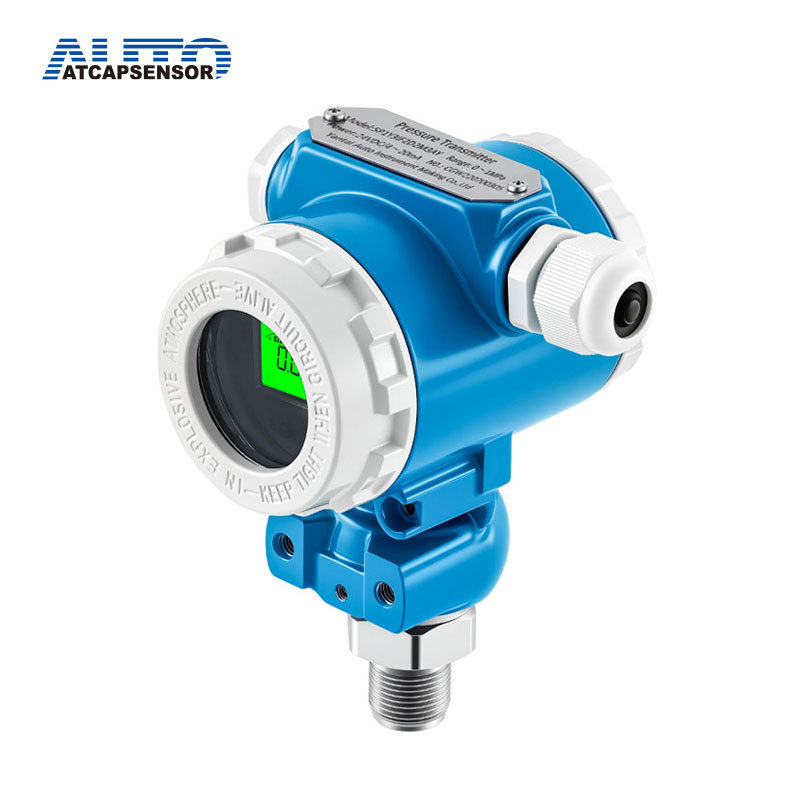

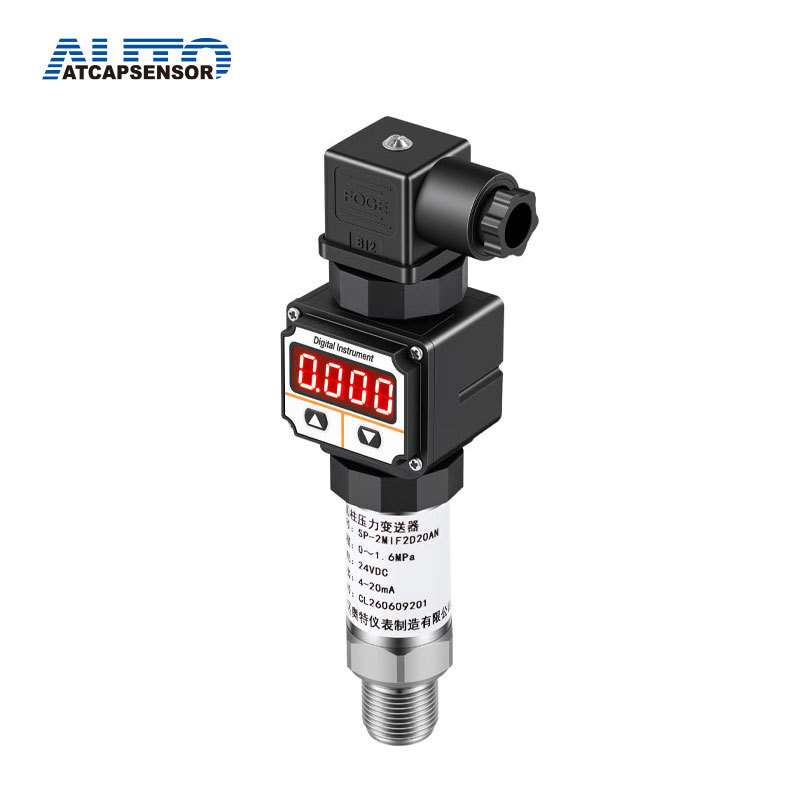

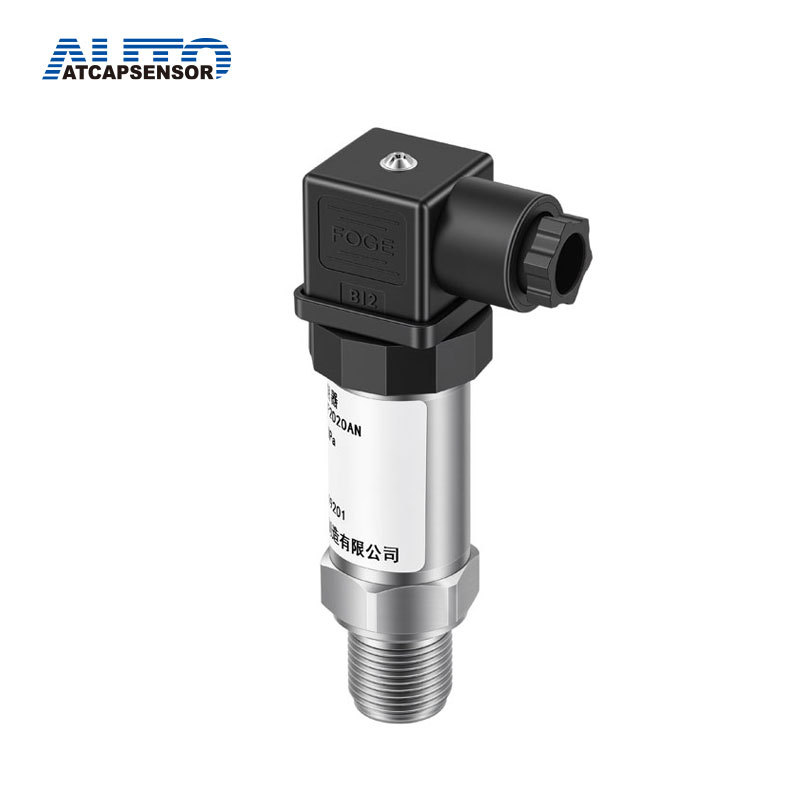

Oil Pressure Sensor Transmitter 4-20mA Output

Get the latest price? We'll respond as soon as possible(within 12 hours)
This field is required
This field is required
Required and valid email address
This field is required
This field is required
  • Information
  • Product Description
  • Video

Digital Pressure Transducer

The compact pressure transmitter utilizes a cutting-edge force-sensitive chip renowned for the pressure sensor transmitters' high accuracy and stability, coupled with a stainless steel isolation diaphragm. This combination enables the device to achieve temperature and linear compensation, as well as providing signal amplification, inverse polarity protection, and current limiting in case of pressure overload. These functionalities are achieved through meticulous laser resistor trimming and advanced thick-film technology.

pressure sensor transmitter


  • Compact construction, no moving parts, long service life

  • Low price, low cost

  • Diffused silicon sensor

  • High accuracy, high stability

  • Easy installation, simple structure, economical type

pressure transducer transmitter

digital pressure transducer

Technical Parameter

Accuracy0.2%FS, 0.5%FS
StabilityBetter than 0.25%FS annually
Installation Location InfluenceNo impact
Temperature Influence (-50~50℃)Less ± 0.15%/10
Working Voltage15V ~ 30V DC
Ambient Temperature-28 ~ 85
Medium Temperature-40 ~ 120
Storage Temperature-40 ~ 110
Compensation Temperature-15 ~ 50
Wetted DiaphragmSS316L, Ceramic
Process Connection ElementStainless Steel
Sealing ElementFluororubber
Shell/HousingStainless Steel, Aluminium Alloy

pressure sensor transmitter

The pressure transducer transmitter can be seamlessly connected to a computer, as well as to control instruments, aptitude instruments, or PLC, among other compatible devices. The stainless steel pressure transmitter delivers an industry-standard output signal of 4-20mA or 0-10V.
