Description

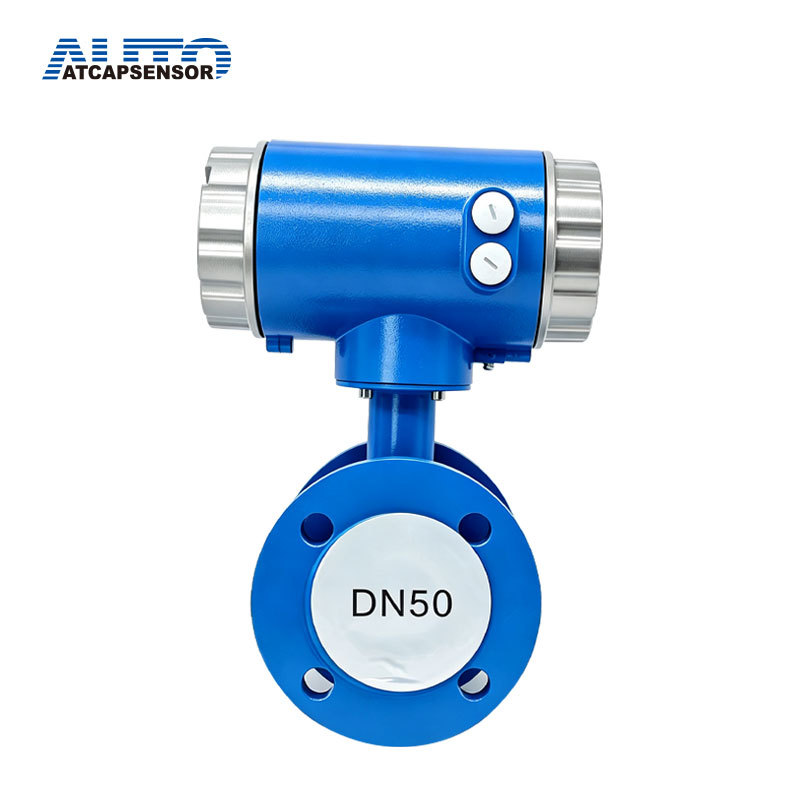

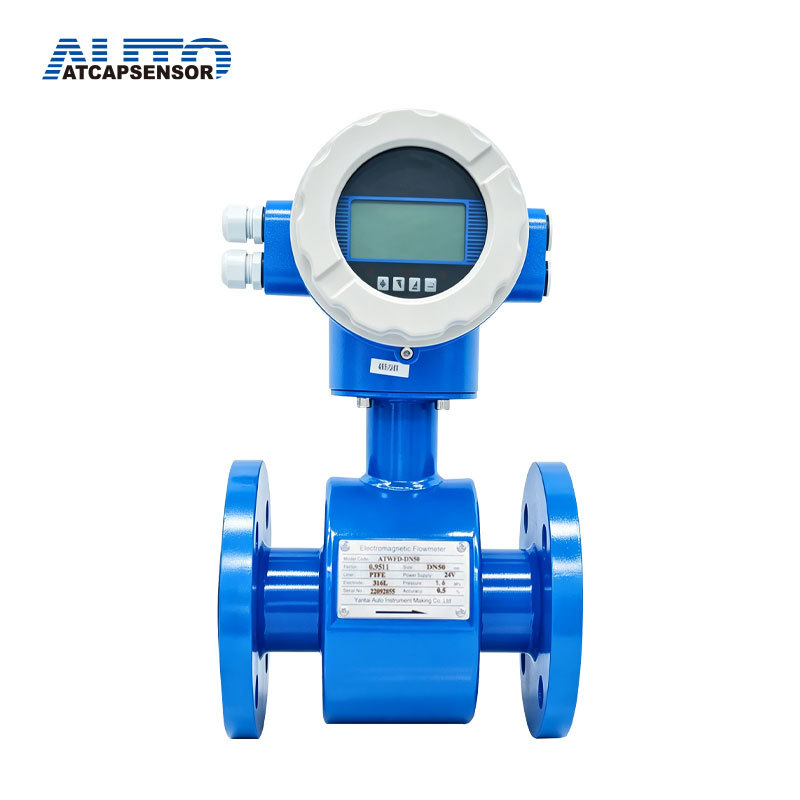

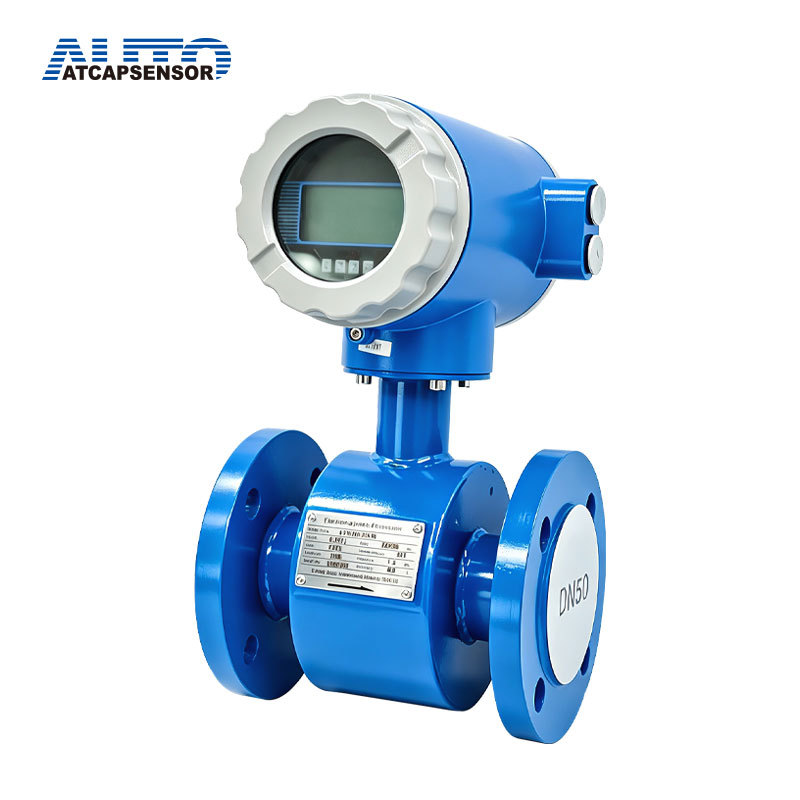

ATWFD Magnetic flow meter measurement design insuring it can be fabricated to be compatible with virtually any conductive liquids regardless density, viscosity, chemical composition or fluid condition/particulate count, and with features of long service life, less maintenance, low pressure drop, minimally invasive. It widely used in many industries and application including wasterwater / municipal, food / beverage, pulp/paper, etc.
Application:
Water & Seawater
Food & Beverage
Chemical & Medicine
Factory Automation
Wastewater & municipal
Pulp & Paper
......
Name: | Intelligent electromagnetic flowmeter |
Accuracy: | ±0.5%R |
Pressure: | 1.6MP (DN10~DN150) 1.6MPA (DN200~DN600) 1.0MPA (DN700~DN1200) 0.6MPA (DN1400~DN2000) (Others can be customized) |
Installation: | Flange(standard) Clamp (customized) |
Electrode: | SS316L(standard) HB / HC alloy (strong acid and alkali) Titanium ; tantalum ; tungsten carbide ; platinum |
Lining: | Neoprene;PTFE;F46;PFA |
Range Ratio: | 20:01 |
Ambient: | Sensor: -25 ~ 180 ℃ converter: -10 ~ 60 ℃ |
Fluid requirements: | Conductive medium (conductivity ≥ 5US / CM) |
Applicable Sizes In 1/8"-80″ (DN3-DN2000).
Wide Fluid Velocity Range Of 0-50 Feet/ Sec (0-15 M/S ) With Excellent Low-Flow Accuracy.
4-20Ma,0-5Khz Pulse And 2A Relay Outputs Available.
Hart, Rs485/Modbus Profibus-DP Communications Available.
Ip 68 Protection Class For Underground Submersible Application.
Easy-To-Read Oled Display; Visible In Low Light Environments And In Direct Sunlight.
Conductivity Of Measured Medium: ≥ 5 Μs/Cm.
Excellent Accuracy ±0.5% Of Reading.
Various Liner/Electrode Material Combinations Make Meter Chemically Compatibility With Different Fluids.
Empty Pipe Detection And Electrodes Resistance Measurement Diagnosing Empty Pipe And Electrodes Contamination Accurately.
......
| Type | General Magnetic Flow Meter (Integral/ Remote Type) | Battery Powered Magnetic Flow Meter | Insertion Type Magnetic Flow Meter |
| Line Sizes | 3/8" - 80" (DN10 - DN2000) | 1/8" - 24" (DN3 - DN600 ) | 3/8" - 240" (DN10 - DN6000 ) |
| Accuracy | ±0.5% of Reading | ||
| Conductivity | must be ≥ 5 μS/cm | must be ≥ 5 μS/cm | must be ≥ 5 μS/cm |
| Process Temp. | -58-356°F (-50-180°C) | -40-300°F (-50-150°C) | -58-356°F (-50-180°C) |
| Housing Material | Carbon Steel / SS 304 / SS 316 | ||
| Electrode Material | SS 316L/ Hastelloy C/ Hastelloy Alloy B/ Nicke/Titanium/ Tantalum/ Tungsten Carbide | ||
| Lining Material | Neoprene(Chloroprene Rubber ) /PTFE / PFA / F46 Ceramic /Hard ubber(Ebonite) / Polyurethane | ||
| Process Connection | Wafer Connection Thread Connection Flange Connection (ANSI, DIN, JIS) Tri-clamp On (Sanitary) | ||
| Grounding Resistance | < 10 Ω | ||
| Protection | IP 65 (Integrated Type) IP 68 (Remote Type) | ||
| Outputs | P-Pulse / 4-20mA / RS 485 / Hart | ||
| Power Supply | AC 220V / DC 24V | ||
| Ambient Temperature | -5 - +130 °F (-20 - 55 °C) | ||
| Relative Humidity | 5% to 90% R.H. | ||
| Application | must be ≥ 5 μS/cm | conductive fluid measurement in areas with no power available | large pipes where high accuracy is NOT needed |
Electromagnetic Flow Meter Order Sheet
Calibration line
Magnetic flow meter applications
2.12 monthed warranty
3. Magnetic flow meter widely used for the measurement of Acid, Alkali, Salt Solution, Water, Sewage, Corrosive Liquids, and fluid flow of Mud, Pulp, etc.
