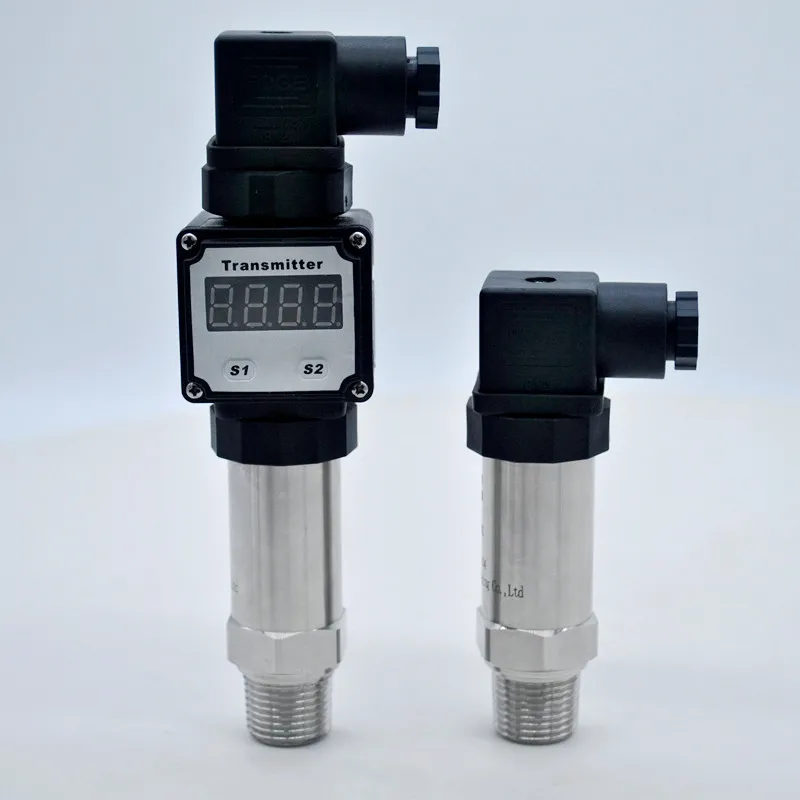

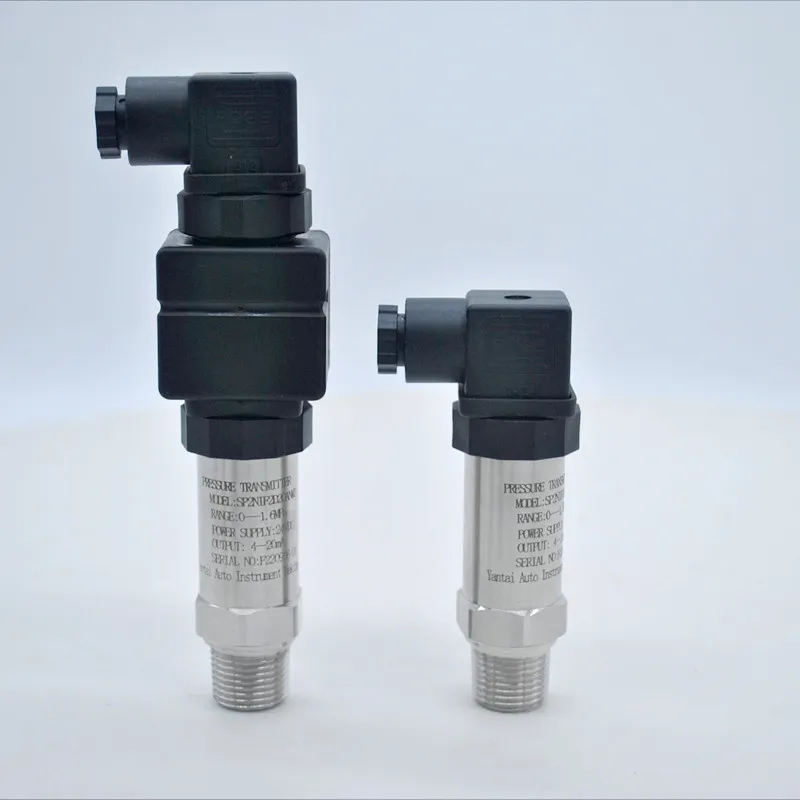

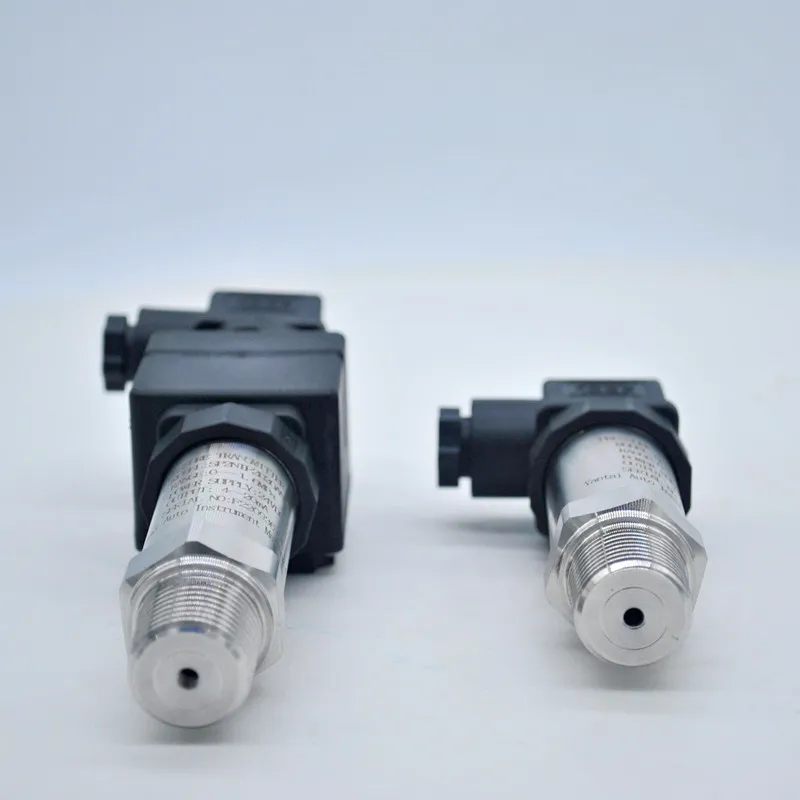

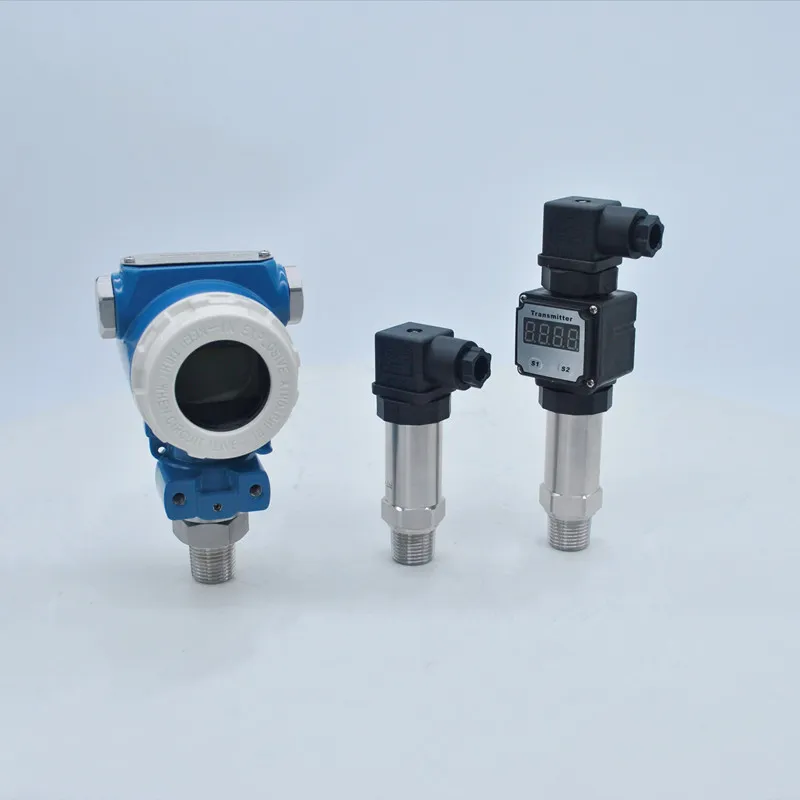

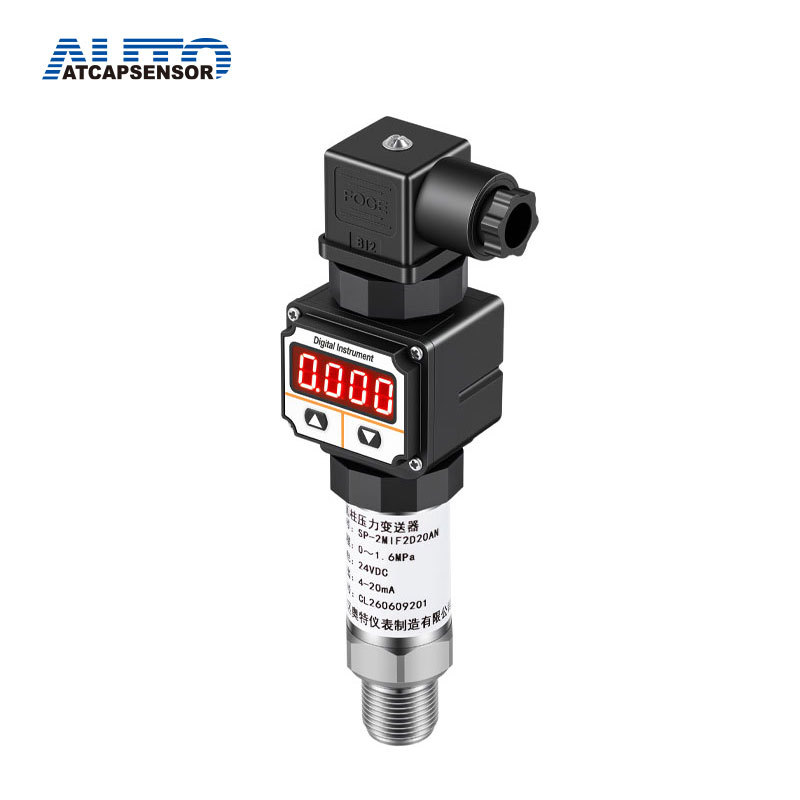

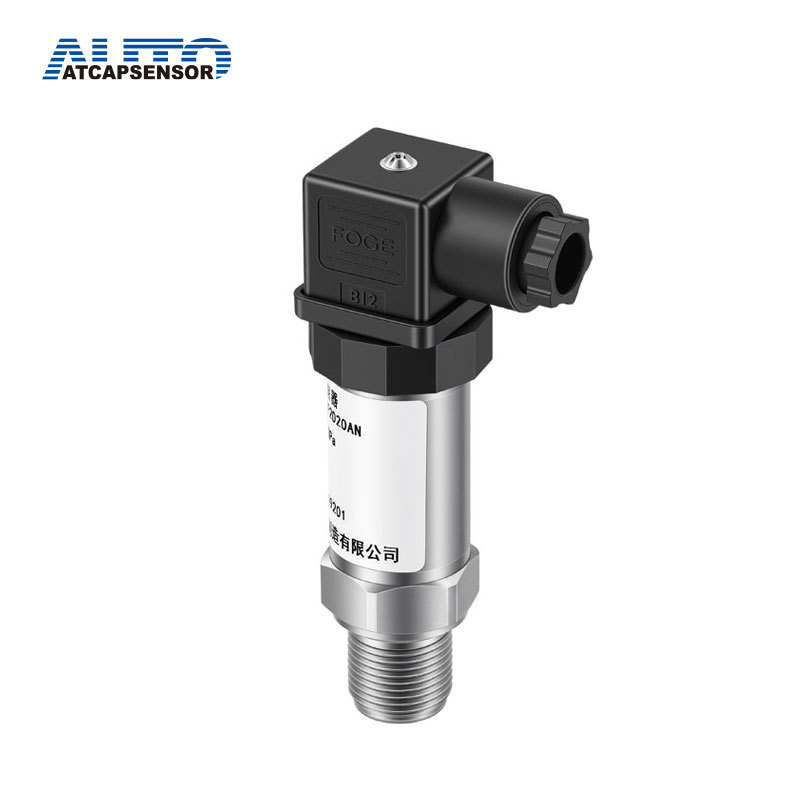

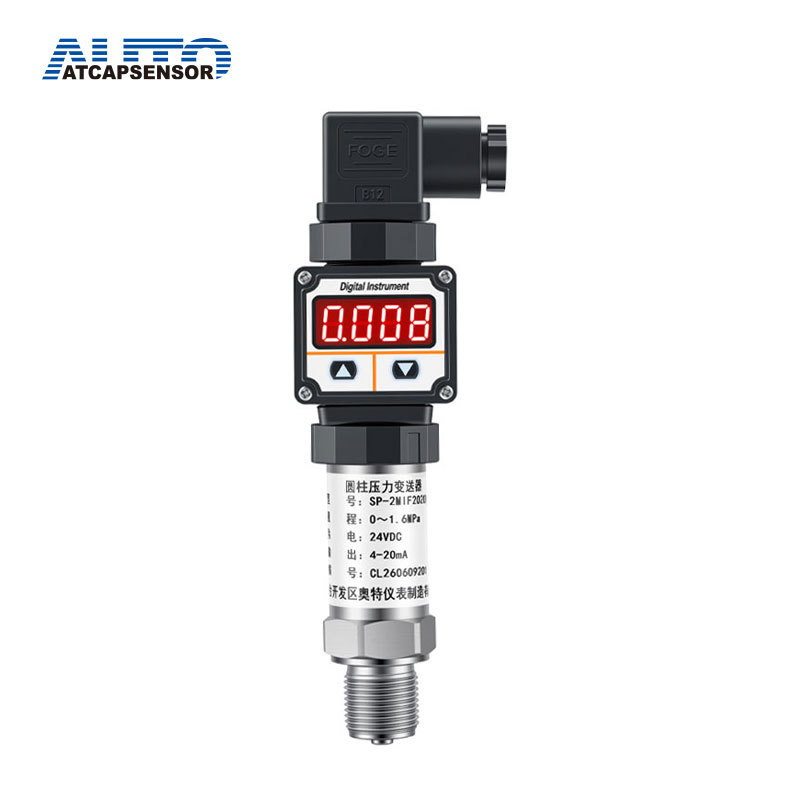

4-20mA Output Signal SP Pressure Transmitter
- Information
- Product Description
- Video
Introduction
SP pressure transmitter, 2088 pressure liquid level transmitter is developed via international key component and advanced technology.Used to measure the pressure,level etc parameter of process fluid (liquid,gas,steam) continuously,then transfer to 4-20mA standard signal and can be combined with unit instrument or DCS system,PLC,constitute automatic control system,widely used for control and measurement in food,petroleum,chemical, metallurgy,electric power,beer,spinning,medicine etcvarious industries.
Features
| Name | Specification Code | Explanation |
| SP | Pressure Transmitter | |
| Process Connection Material | 1 | Stainless Steel |
Process Connection | R | G1/2″ , G1/4'' |
| M | 1/4" NPT M, 1/2 NPT M | |
| Y | Customize | |
Sealing Material | IF | Fluoro rubber (standard) |
| IH | Fluoro rubber applied to sensors (Over 10MPa) | |
| Electronic Components of Transmitters | 2 | Analog signal 4-20mA (two wire) |
| 3 | Customize | |
| Shell Material and Structure | A | Aluminum shell PG16 cable sealing IP65 |
| B | Stainless steel shell cylinder structure | |
Sensor Type | 0 | Diffused Silicon Type |
| 1 | Diffusion Silicon Anti-Corrosion Type | |
| Explosion-Proof Requirements | D | No Explosion-Proof Required |
| E | Explosion-Proof Type | |
Accuracy | 2 | 0.2% |
| 5 | 0.5% |
Industry Application
Chemical Industry
Petroleum Industry
Metallurgy Industry
Thermal Equipment
Paper Making Industry
Order Sheet
| Item | Code | Specification |
| SP | Pressure Transmitter | |
| Process Connection Material | 1 | Stainless Steel |
Process Connection | R | G1/2'' |
| M | NPT1/2'' | |
| Y | Customize | |
| Sealing Material | IF | Fluoro Rubber(Standard) |
| IH | Fluoro Rubber Applied To Sensors(Over 10Mpa) | |
| Output | 2 | 4-20mA(Two Wire) |
| 3 | Customize | |
| Shell Material And Structure | A | Aluminum Shell PG16 Cable Sealing IP65 |
| B | Stainless Steel Shell Cylinder Structure | |
| Sensor Type | 1 | Diffused Silicon Type |
| 2 | Diffused Silicon Anti-Corrosion Type | |
| Explosion-Proof Requirements | D | No Explosion-Proof Required |
| E | Explosion-Proof Type | |
| Accuracy | 2 | 0.20% |
| 5 | 0.50% |
Ready To Delivery
2. SP/SH series pressure transmitter can be directly joined with computer joint clip, control instrument ,aptitude instrument or PLC etc.
3. The Steam Pressure Transmitter has a small size for easy installation，so it can be installed in small rooms.
