sensor differential pressure

Brief Introduction

The (differential) pressure transmitter is suitable to measure liquid, gas, or steam flow as well as liquid level, density and

pressure. Outputs a 4~20mADC signal corresponding to the measured differential pressure. Its highly accurate and stable sensor canalso measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.


  • Stability:0.2%/Year

  • Range:250pF ±20PF

  • Zero:130pF ±20PF

  • Accuracy:Nominal Range 0.1%

  • Model Number:AT3051

  • Process Temperature Range:-40 to 104°c

  • Stability:0.2%/Year

  • Fill Fluid:Silicone /Fluorine Oil

  • Wiring System:3-Wire,5-Wire

  • Housing Material:316SS

  • Overpressure Limit:AP GP 13.8Mpa DR DP HP

Industry Application

Application:Excellent resistance against aggressive media

Pressure Range

Product nameCodeRange
 capacitive pressure sensor2E



Production Line

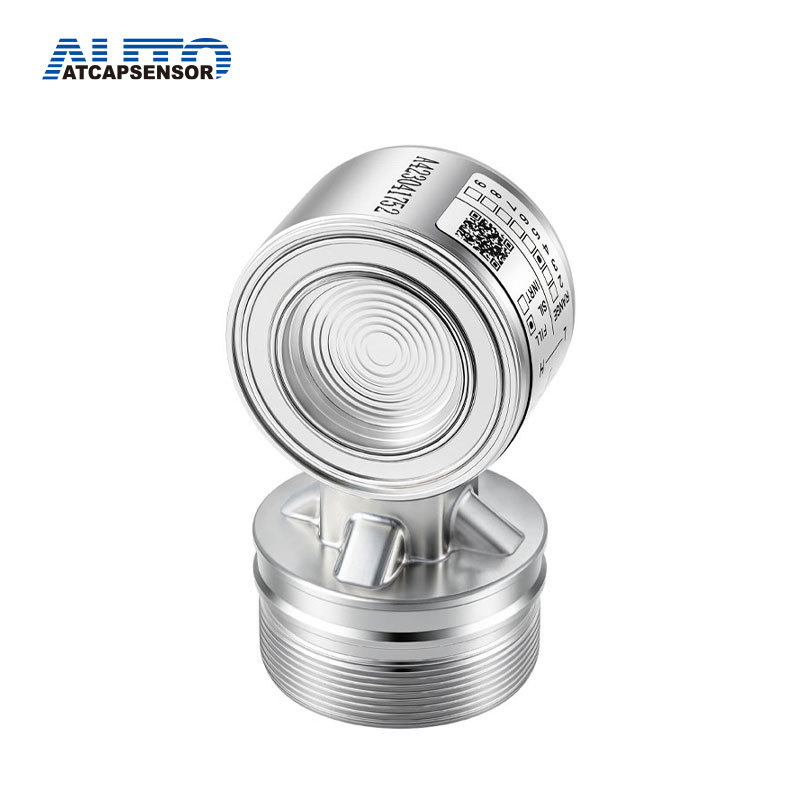

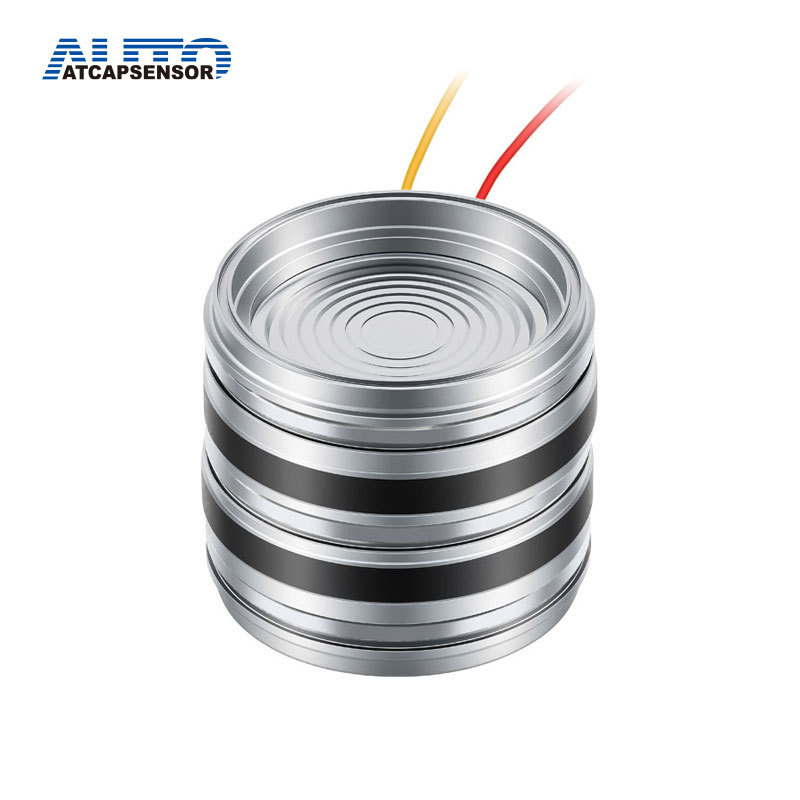

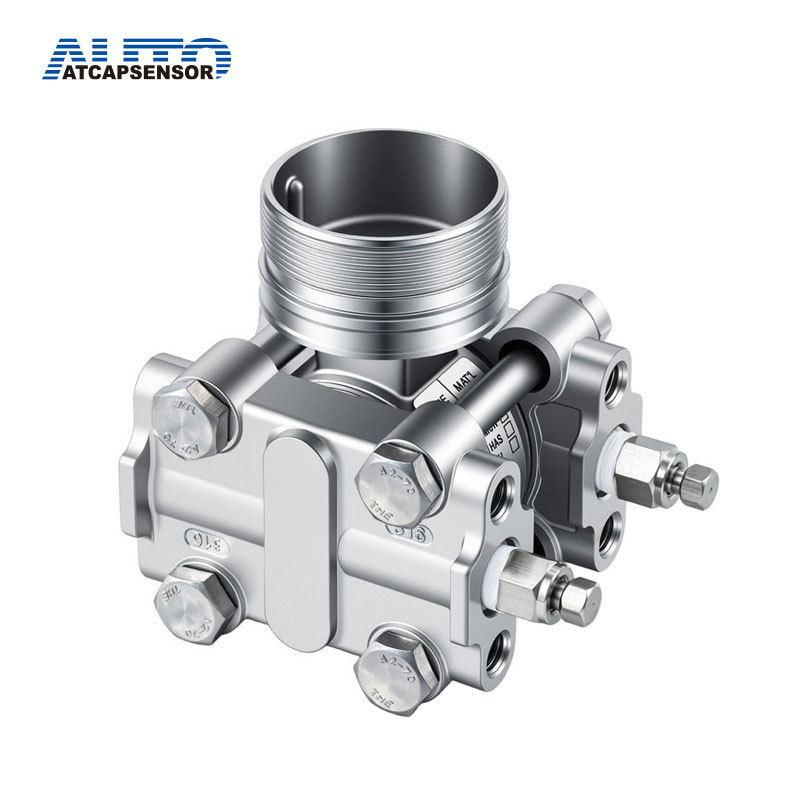

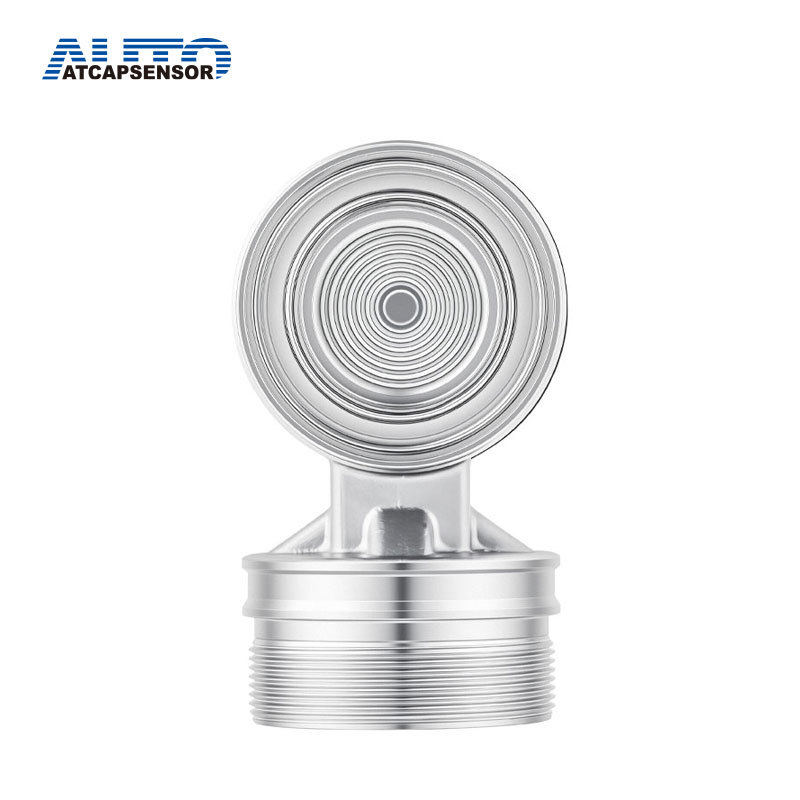

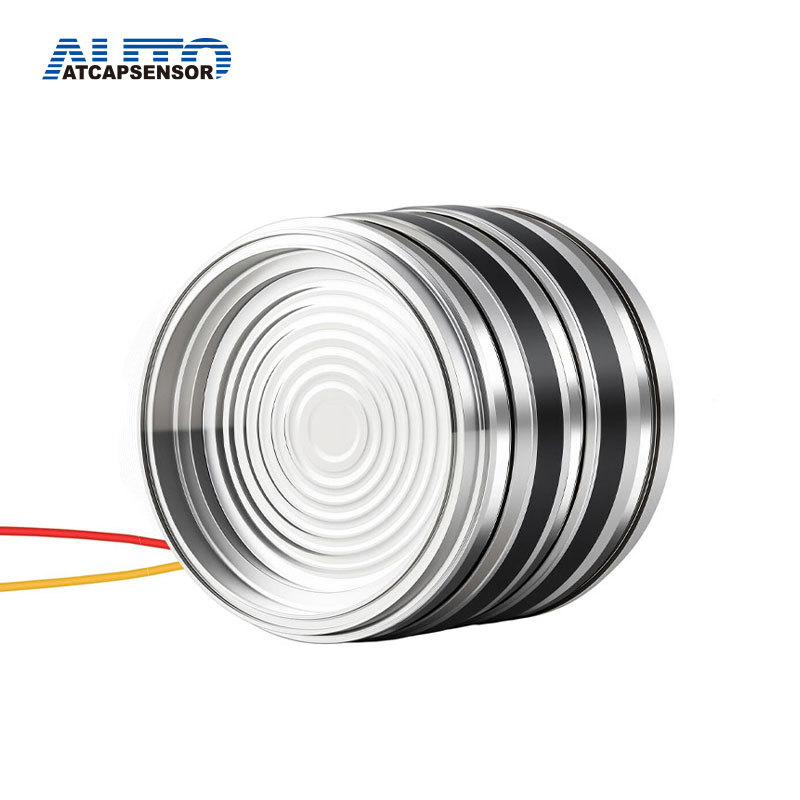

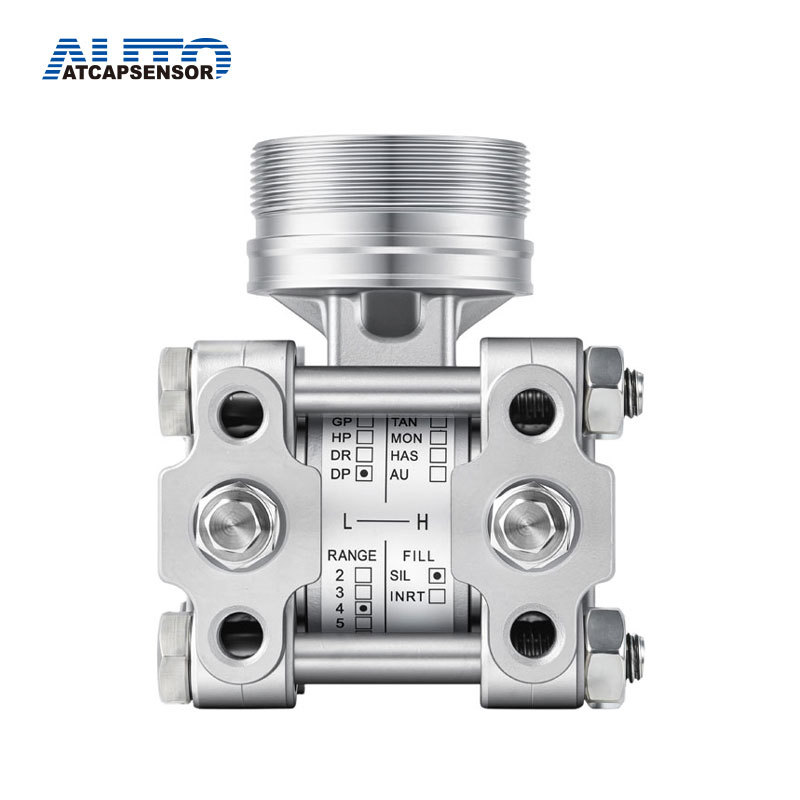

Metal Capacitive differential pressure Sensor

Related Product

sensor differential pressure

1. Metal Capacitive pressure sensor adopt advanced production technology: unique anti – condensation technology
2. The differential pressure sensor has excellent long-term stability:±0.2%(12 months)
3. The differential pressure sensor adopts an all-welded structure and is suitable for measuring a variety of media
