Introduction
The high performance Gauge / Absolute pressure transmitter AT3051 is suitable tom easure liquid, gas, or steam flow as well as liquid level, density and pressure. it outputs a 4~20ma DC signal corresponding to the measured pressure. Its highly accurate and stable sensor can also measure the static pressure which can be shown on the integral indicator or remotely monitored via HART communications. Other key features include quick response, remote set-up using communications, self-diagnostics and optional status output for pressure high/low alarm.
PHYSICAL SPECIFICATIONS
Model No. | AT3051 |
Power supply | 24V |
Outout signal | 4~20mA Analog output/HART communication |
Measurement range | 0~1kPa to 0~100MPa |
Transport temperature | -50~85℃； with liquid crystal display -40~85℃ |
Environment temperature | -40~85℃； with liquid crystal display and fluororubber seal ring -20~65℃ |
Ingress protection | IP67 |
Accuracy | 0.1% |
Diaphragm material | Stainless steel 316L、hastelloy C |
Product shell | Aluminum alloy with epoxy coating |
Weight | 2Kg |
INDUSTRY
Water treatment and distribution
Oil and gas
Chemical
Food Industry
Pressure Transmitter Order Sheet
| Item | Code | Specification |
AT3051TG | Gauge Pressure Transmitter | |
| AT3051TA | Absolute Pressure Transmitter | |
| Measurement Range | 3 | 0-1.5~7.5 Kpa |
| 4 | 0~37.4 Kpa | |
| 5 | 0~186.8 Kpa | |
| 6 | 0~690 Kpa | |
| 7 | 0~2068 Kpa | |
| 8 | 0~6890 Kpa | |
| 9 | 0~20680 Kpa | |
| 0 | 0~100Mpa | |
| Output | S | 4-20mA, HART Protocol, Linear output |
| Diaphragm Material | 2 | Stainless Steel 316L |
| 3 | Hastelloy C | |
| Fill Fluid | 2 | Silicone Oil |
| 2 | Fluorine oil | |
| Process Connection | D | 1/2'' NPT F |
| A | M20*1.5 | |
| B | 1/2'' NPT M | |
| C | 1/2'' G | |
| D | Customizable | |
| Cable Entry | 1 | M20*1.5； NPT1/2'' |
| Optional | d | Intrinsically safe type, Flameproof (Exd IIC T4~T6) |
| i | Intrinsically safe (Exia IIC T4~T6) | |
| M3 | LCD display | |
| K1 | Degreasing treatment | |
| L1 | Hanging tag | |
| 5C6 | Lightning protection | |
Ready For Absolute Vacuum Pressure Transmitter
Production Line
Applications Absolute Vacuum Pressure Transmitter

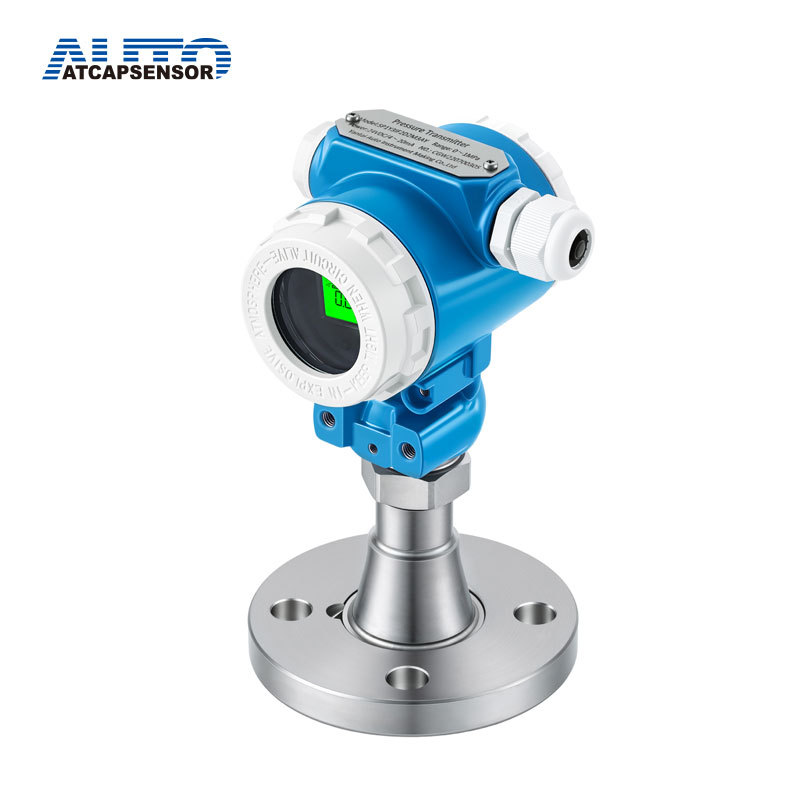

Absolute Vacuum Pressure Transmitter
Absolute Vacuum Pressure Transmitter
Universal pressure transmitter adopt high performance pressure sensor with high precision,accurate digital intelligent circuit board.
Products is stable and reliable,with full welding structure
Universal pressure transmitter adopt high performance pressure sensor with high precision,accurate digital intelligent circuit board.
Products is stable and reliable,with full welding structure
